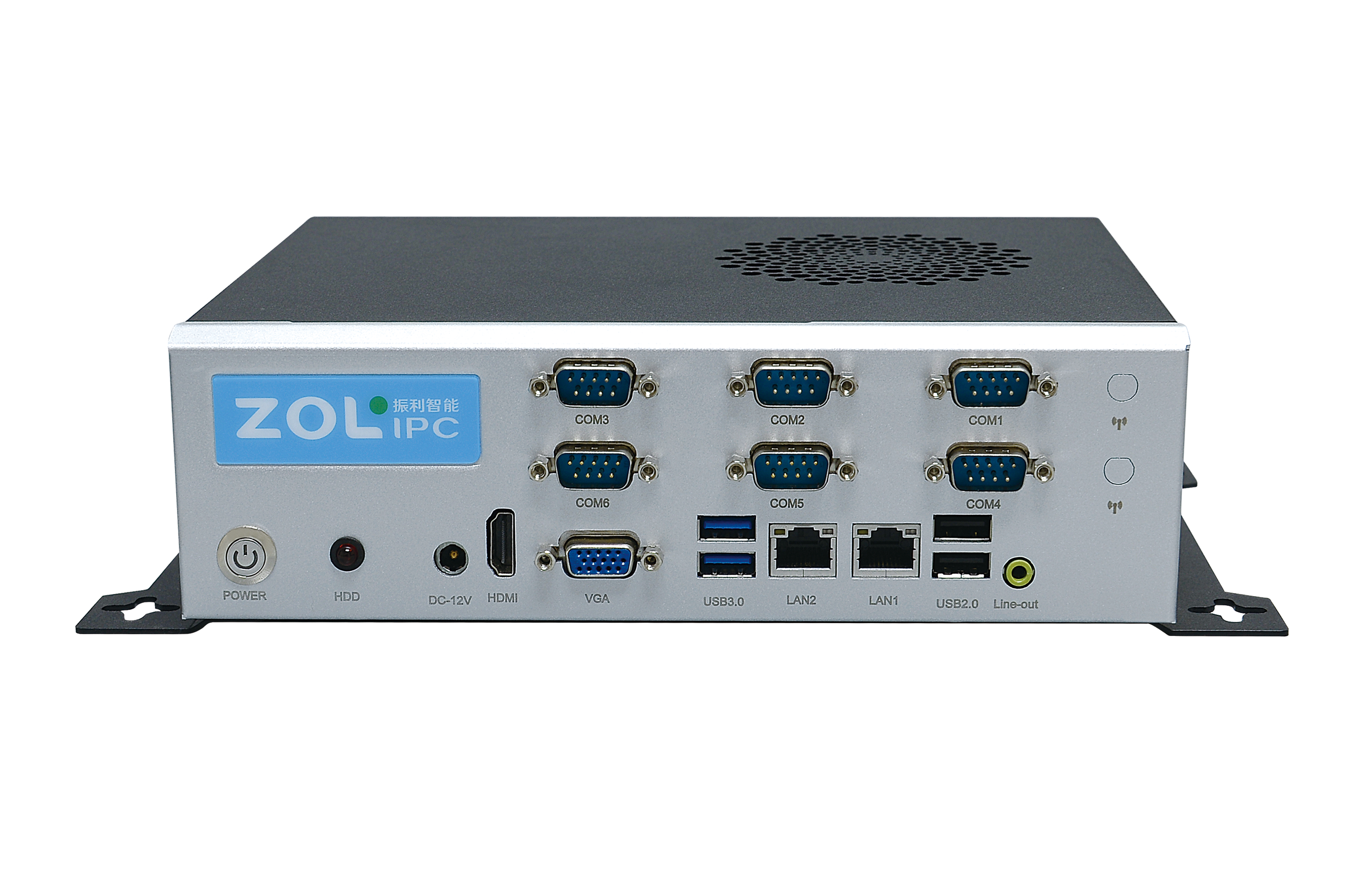

ZOL-M150 Wall Mounted Qquasi System
▶Processor: Socket (LGA1155) Support Intel Ivy Bridge CPU（Co-lay support Sandy
Bridge CPU/Embedded CPU SKU）
Intel Core i7-2600 3.4GHz up to 95W
Intel Core i5-2400 3.1GHz up to 95W
Intel Core i3-2120 3.3HHz up to 65W
Chipset B75
▶Memory: DDR3 1333/1066 LONG-DIMM x 4, up to Max.32GB
▶Storage: 2 x 3.5 SATA HDD, 1 x 2.5 SATA HDD
▶I/O: 1 x VGA，1 x DVI-D，2 x LAN，10/100/1000MBps
4 x COM COM1~2:RS-232/422/485 COM3~4:RS232
6 x USB2.0 (2 front), 2x USB3.0, 1 x PS/2 Port
1 x Line-in/Line-out/Mic，
▶Front: Power indicator x 1, Reset key x 1,Power button x 1, HDD indicator x 1
▶System fan: 12025FAN x 1
The R&D department takes scientific talents as the center, formulates scientific design scheme, supplemented by precision instruments and excellent equipment, and uses advanced software to carry out work. Ensure that the designed products can be put on the market only after strict practice and excellent quality. For relevant technical questions, please call Yang Gong at 13129889909.
